YJ-2008B
  • YJ-2008B
YJ-2008B
2020-01-14 15:54:22 Click: 2638

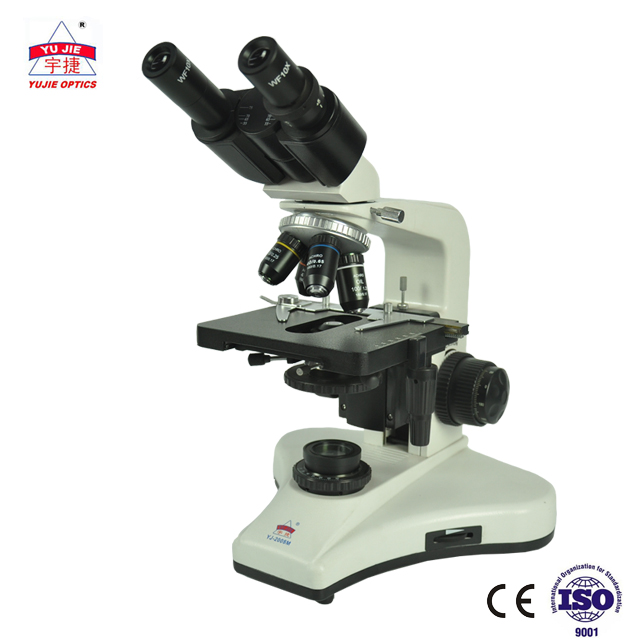

This series microscope is a bigger size model and  high precision instrument designed and produced by our company.It is espcially designed for clinical examination and teaching demonstration in medical and health establishments, laboratories, agricultural science and technology field, research institutes. It is used for routine work and research in biology, bacteriology cytology and pharmacology.


Production Description

YJ-2008B 拷贝.jpg

EyepieceWide Field Plan-scope Eyepiece: WF10X/18mm

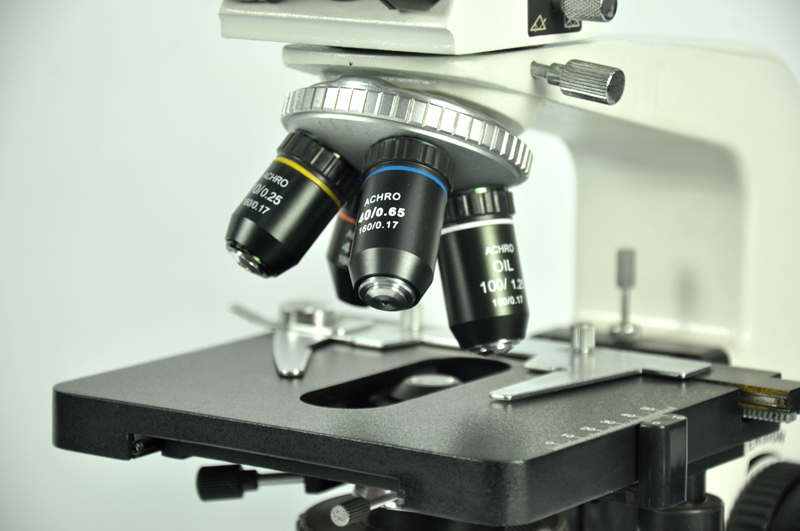

Objective45mm DIN Achromatic Objective: 4X,10X,40X(S), 100(S,Oil)
Head

Articulated Free Binocular Head, Interpupillary Distance:55-75mm;

30°Inclined, 360°Rotatable

StageDouble Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm

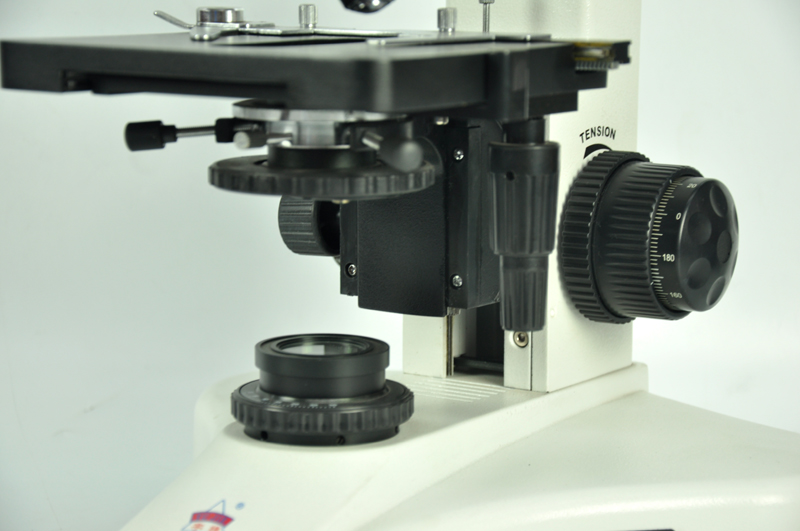

CondenserABBE Condenser: N.A.1.25; Ф2-Ф30mm Iris Diaphragm and Ф32 Filter
Focusing Adjustment

Coaxial Coarse and Fine Focusing Adjustable Mechanism: 30mm, Precision:0.002mm

IlluminationOptional: 6V/20W Halogen Lamp;Built-in Adjustable Brightness 1W LED lamp
Optional

1.WF16X, WF20X;

2.Semi Plan Objective, Plan Objective;

3.Rechargeable Batteries

Net Weight6.8kg

Package

1set/Foam + Carton

1set/Carton, gross weight: 9.3KG,

Carton Dimension: 42X35X52cm
