YJ-2006M
  • YJ-2006M
YJ-2006M
2020-01-15 15:20:55 Click: 4075

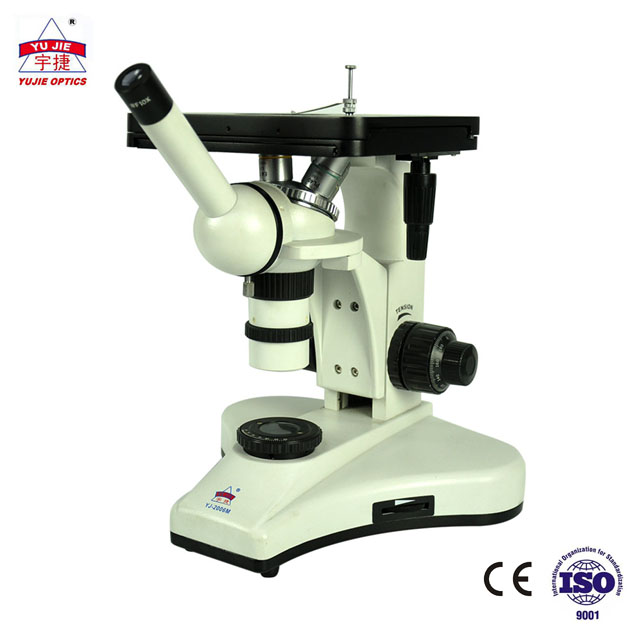

This microscope is especially used for identifying and analyzing various kinds of metal and ally’s structure , can be widely used in industry, school and laboratory for various kinds of metal parts’ quality identification, raw material’s inspection and metallurgical structure’s researching and analyzing after material processing. It has the characteristics of clear image, good contrast and easy operation. It is an ideal instrument for biology, mineralogy, precision engineering and electronics research.



Production Description






Eyepiece

Wide-field plane-scope eyepiece: WF10X(Optional: WF12.5X);

Wide-field plane-scope eyepiece with 0.1mm cross micrometer: WF10X

Objective

45mm DIN achromatic objectives: 10X, 100X(S, Oil);

Metallurgical plan-scope achromatic objective: 40X(S)

Magnifications100X-1250X
Micro-ruler0.01mm/scale
HeadMonocular head, 45° inclined
Stage

Double layers mechanical stage 200x180mm, with 2 plates (?10 & ? 20mm);

Moving range X-Y: 70X50mm

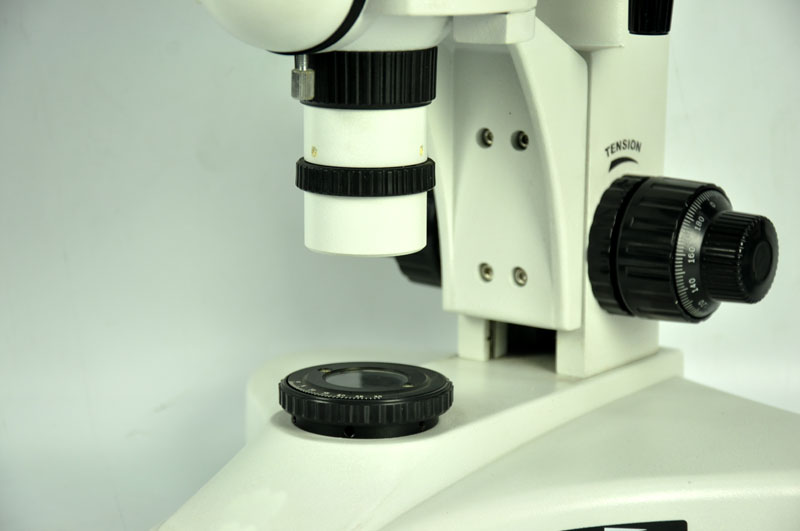

Focusing AdjustmentCoaxial coarse and fine focusing adjustment mechanism by rack and pinion with tension adjustment and stage height limited knob;
Focusing range25mm; Precision: 0.002mm
Base and IlluminationTriangle base, built-in adjustment brightness halogen lamp 6V/20W and kohlar illumination system with blue, green, yellow and ground glass filters
Net Weight8kg

Package

1set/Foam + Carton

Gross Weight/Carton:  10kg

Carton Dimension: 42X35x52cm
